SNSC CHARIOT ELEVATEUR LPG GASOLINE POWERED 2.5 TONS FORKLIFT TRUCK AUSTRALIA customer ordered 3 units FL25 2.5 ton LPG & Gasoline forklift from us,
With JAPAN NISSAN K25 ENGINE, triplex full free 4.5m lift mast, side shifter, solid tyre, electric hydraulic transmission. Customer satisfyed our forklift very much.

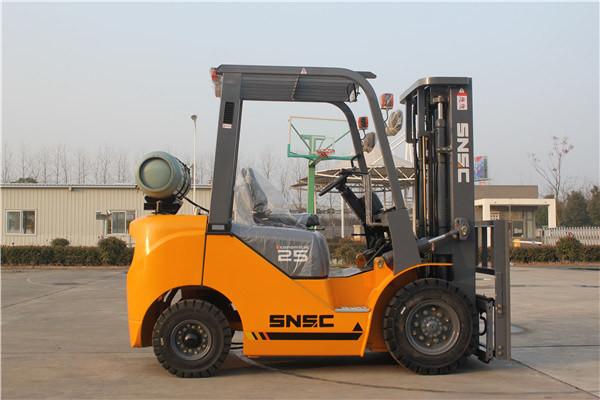

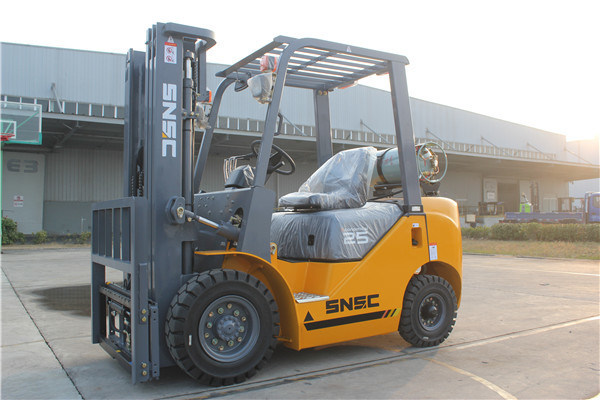

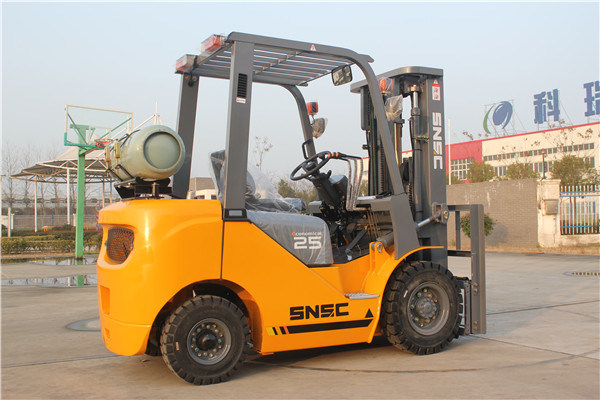

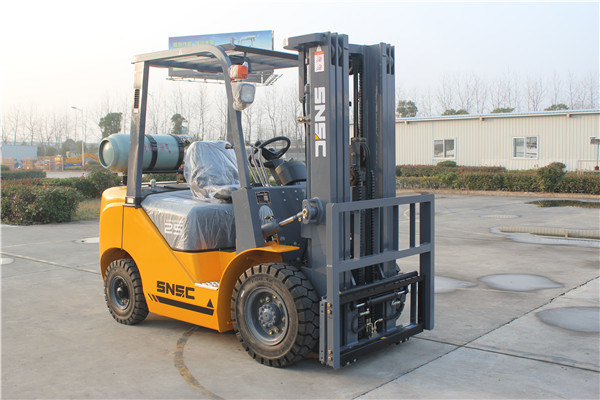

FL25 2.5 ton LPG & Gasoline forklift with side shifter, triple 4.5m mast
Main Features for SNSC CHARIOT ELEVATEUR LPG GASOLINE POWERED 2.5 TONS FORKLIFT TRUCK
1) Our 2.5tons lpg gasoline powered forklift truck equip with original Japan NISSAN K25 gasoline engine;
2) 2.5t petrol engine forklift lifter truck with auto electric hydraulic transmission by finger with TCM technology, just use your finger that can achieve the forklift's forward and backward;
3)FL25 gas lifter truck forklift with USA IMPCO converter;
4) 2.5t petrolem forklift truck with CE, ISO, GHOST certificates, quality is guaranteed;
5) SNSC 2.5t lpg forklift euqips with JAPANESE hydraulic system, like JAPAN SHIMADZU brand hydraulic pump and muti-way control valves, which can guarantee our snsc 2.5t forklift's best performance;
6) SNSC gas power 2.5t forklift installed famouse USA EATON brand steering gear, which makes our snsc forklift have longer working life;

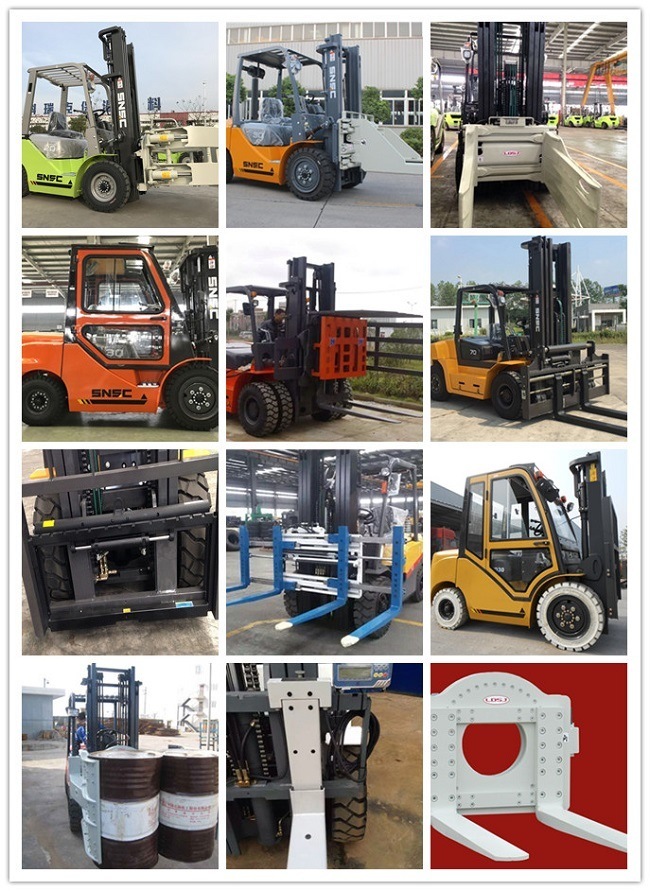

7) SNSC FL25 lpg gasoline forklift truck can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast, bale clamp, button clamp, block clamp, cabin, etc.
Specifications of SNSC CHARIOT ELEVATEUR LPG GASOLINE 2.5TONS FORKLIFT TRUCK This is our standard 2.5ton diesel forklift techincal specifications. We also can customized the fork lifter according to our customer's demands and working conditions. | FL25 LPG GASOLINE FORKLIFT TRUCK SPECIFICATIONS |
| No. | Specifications | Unit | FL25 |
| 1 | 1 | Characteristics | Power | | LPG GASOLINE |
| 2 | 2 | Rated Capacity | kg | 2500 |
| 3 | 3 | Center of load | mm | 500 |
| 4 | 4 | Lifting height | mm | 3000 |
| 5 | 5 | Free lifting height | mm | 135 |
| 6 | 6 | Forks L×W×H | mm | 1070x122x40 |
| 7 | 7 | Tilt Forward/Backward | . | 6/12 |
| 8 | 8 | Min.turning radius | mm | 2240 |
| 9 | 9 | Min.ground clearance(Mast) | mm | 110 |
| 10 | 10 | Overhead guard height | mm | 2120 |
| 11 | 11 | Height from seat to overhead guard | mm | 943 |
| 12 | 12 | Front overhang | mm | 473 |
| 13 | 13 | Perf | Max.traveling speed(loaded) | km/h | 19 |
| 14 | 14 | Max.lifting speed(loaded/empty) | mm/s | 470/510 |
| 15 | 15 | Drawbar pull/Gradeability | kN/% | 17/20 |
| 16 | 16 | Dimensions | Overall length (without fork) | mm | 2570 |
| 17 | 17 | Overall width | mm | 1175 |
| 18 | 18 | Mast lowered height | mm | 1990 |
| 19 | 19 | Mast extended height | mm | 4000 |
| 20 | 20 | Chassis | Tire | Front | | 7.00-12-12PR |
| 21 | 21 | Rear | | 6.00-9-10PR |
| 22 | 22 | Wheelbase | mm | 1600 |
| 23 | 23 | Tread width | Front/Rear | mm | 970/970 |
| 24 | 24 | Curb weight | None-load | kg | 3750 |
| 25 | 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 26 | 26 | Engine | Model | | original japan nissan k25 engine |
| 27 | 27 | Rated power | kw/r.p.m | 37.4/2300 |
| 28 | 28 | Rated torque | Nm/r.p.m | 176.5/1600 |
| 29 | 29 | Cylinder amount | | 4 |
| 30 | 30 | Bore×Stroke | mm | 89×100 |
| 31 | 31 | Displacement | | 2.488 |
| 32 | 32 | Fuel tank | L | 60 |
| 33 | 33 | Transmission | 1/1 automatic transmission |
| 34 | 34 | Working pressure | MPa | 17.5 |

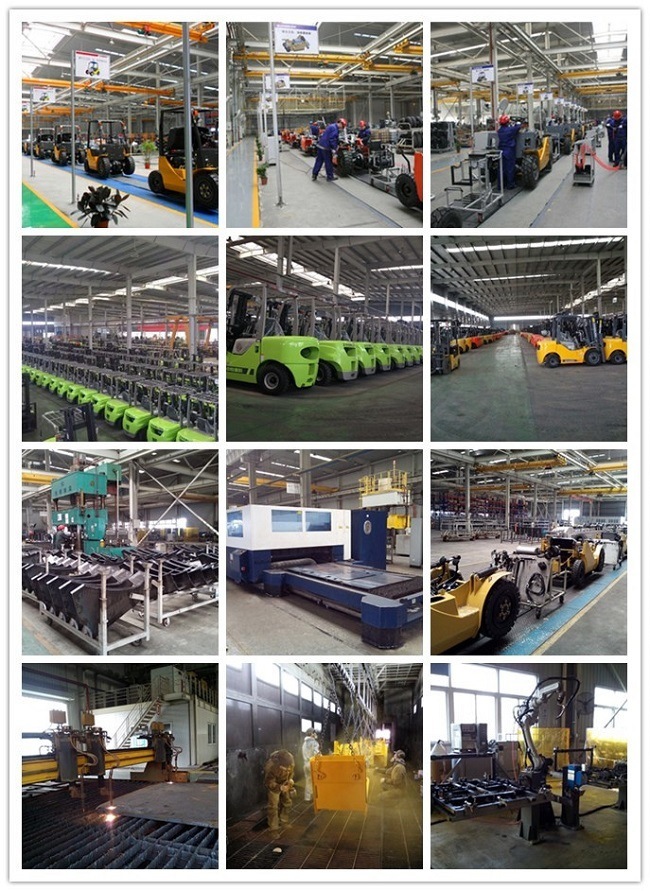

Our Factory Show for SNSC CHARIOT ELEVATEUR FORKLIFT TRUCK PRODUCTION We, SNSC fork lifter factory, are top 3 fork lifter montacargas manufactures and top 20 in the world. with 130,000 square meters production area, over 500 employees,30,000 units forklifter diesel truck production capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are responsible for our customers and forklifts.
''QUALITY LEADING THE FUTURE" is our belief for ever.
We'd like to offer our best quality fork lifters to our customers from all over the world.
SNSC brand FL25 2.5tons lpg gasoline powered FORKLIFT TRUCK shipment SOLUTIONS:
Our 2.5ton LPG GASOLINE forklift can be delivered by container or ro-ro shipment.
One 20'GP containr can hold 3 units 2.5tons gasforklifts;
one 40'GP container can hold 6units 2.5ton petrol engine forklift trucks.
Related SNSC forklift products
Our SNSC forklifts have different forklift series that can meet our customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to 10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70,FD80,FD100)
2. Battery powered electric forklift truck range from 1.5 to 3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift trucks range from 1.5 to 3.5 ton;(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach truck, electric stacker & electric trailer, scissor lift, double deep electric reach truck, racks.
If you have interests in our SNSC LPG GASOLINE forklift, welcome you to contact Nicole
