2 ton 2.5 ton Electric Reach Truck with 8m 9m 10m Triple Mast and Fork Width 122MM

Name: 2 ton 25 ton Electric Reach Truck with 8m 9m 10m Triple Mast and Fork Width 122MM
Brand: snsc
Price: 1 USD

Quality 2 ton 2.5 ton Electric Reach Truck with 8m 9m 10m Triple Mast and Fork Width 122MM wholesale

Place of Origin : china

Packaging Details : shipped by container

Supply Ability : 500/Months

Price : negotiable

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction works

Showroom Location : United States, Italy

Condition : New

Power Souce : AC Motor

Fork Length : 1220MM

Fork Width : 122MM

Overall Dimensions : 2565*1290*2470mm

Warranty : 1 Year

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Weight (KG) : 3250 kg

product name : china battries forklift electric reach truck 1.6 ton 2 ton 2.5 ton

After-sales Service Provided : Overseas third-party support available

Controller : Imported USA Curtis

Redirector : USA Eaton Redirector

Mast : 2-3 stages

Transmission type : Automatic Japan shimadzu tranmission

Tire : Pneumatic Standard

Other option : solid tire/fork extension/high exhaust ect

Attachement : side shifter / positioner /clamp ect

Lifting height : 3-6m

Brand Name : snsc

Certification : CE/ISO

MOQ : 1 unit

Delivery Time : 30-45 Days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Product Description

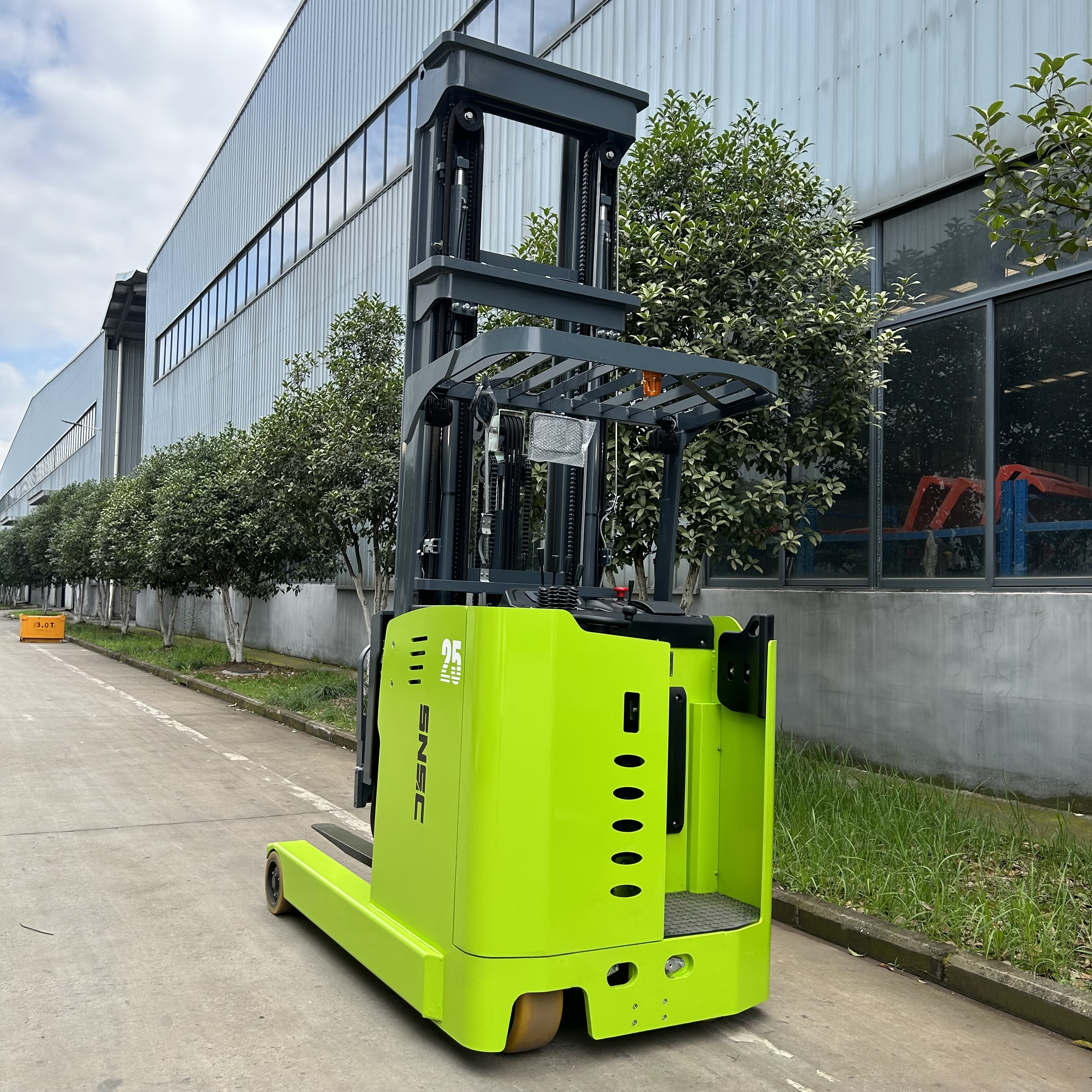

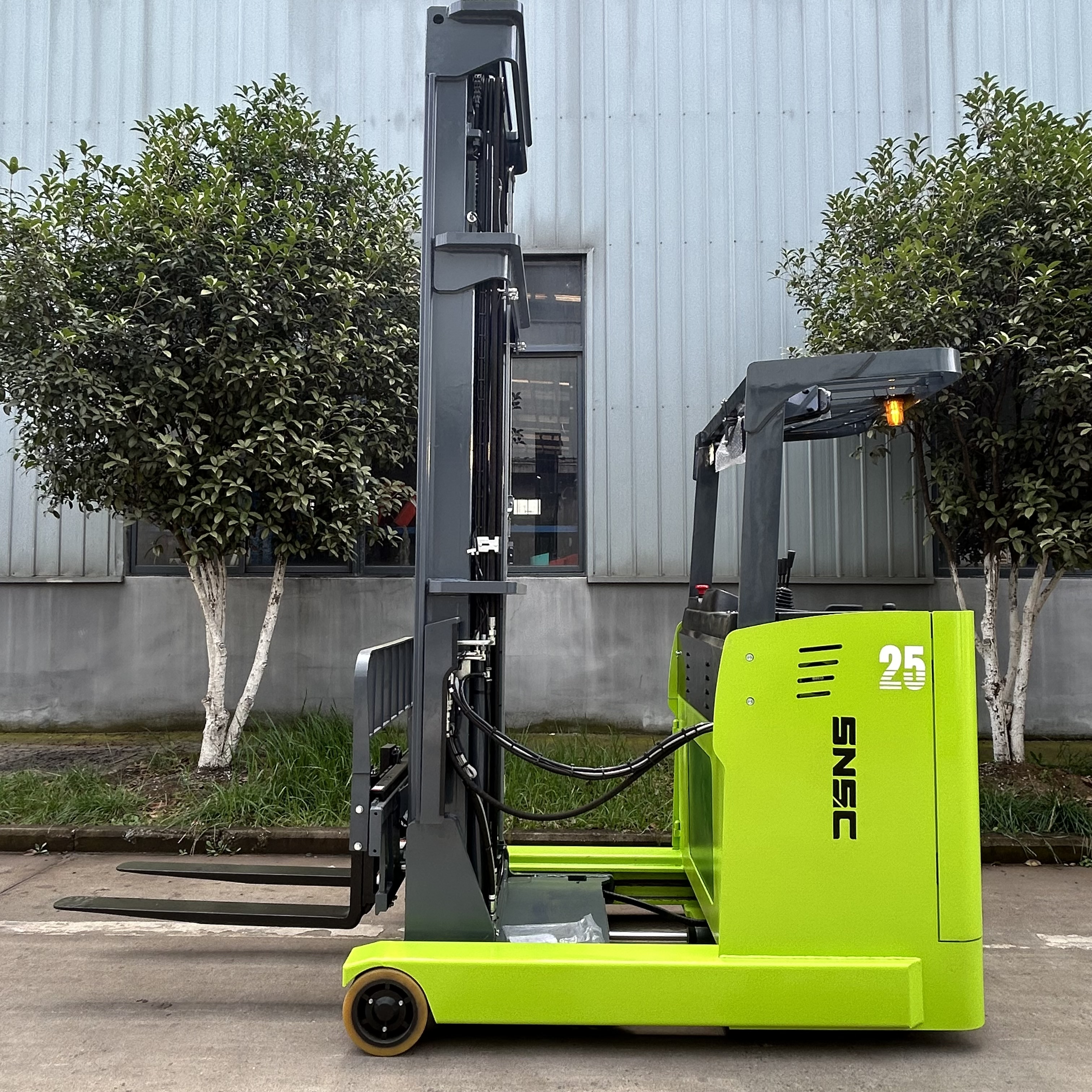

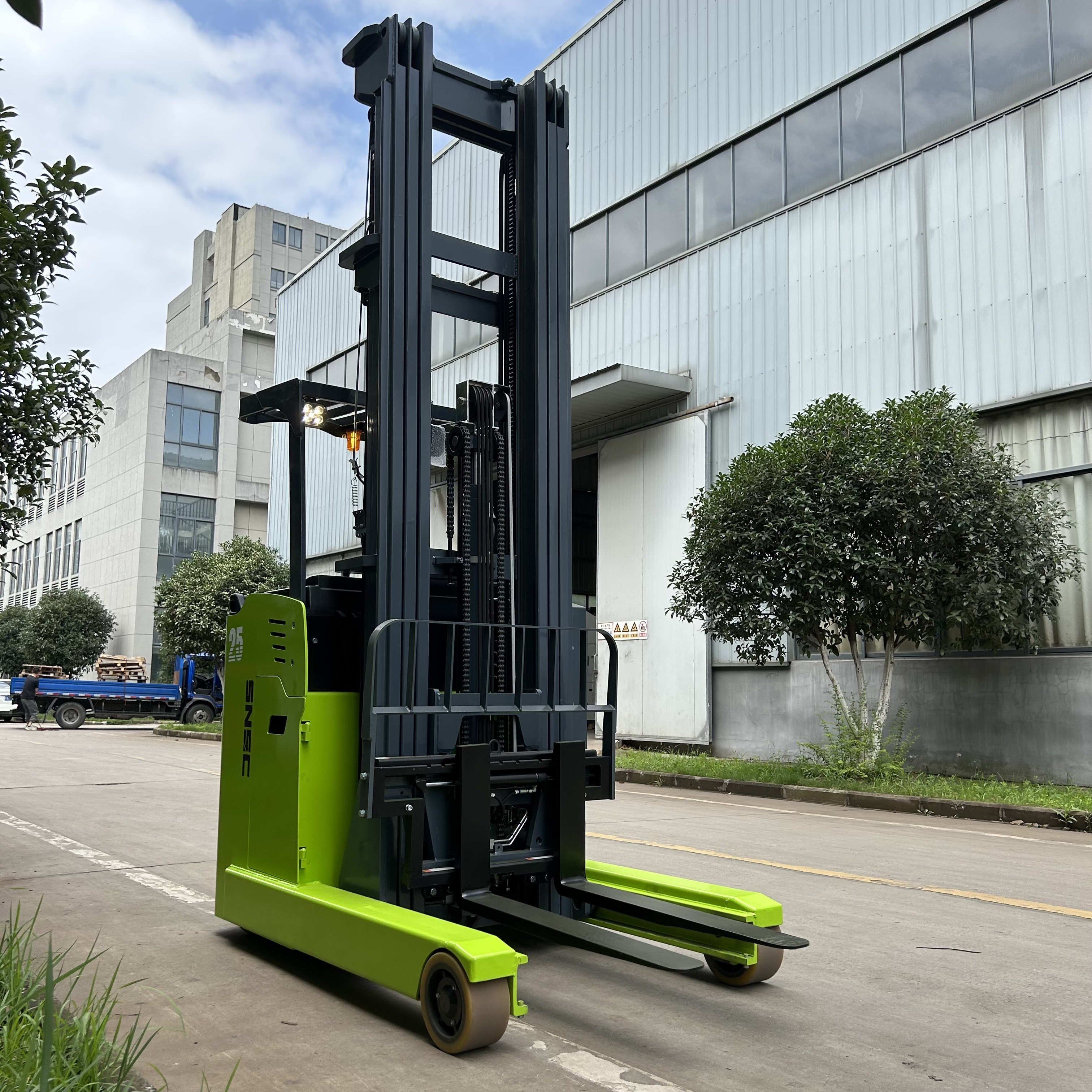

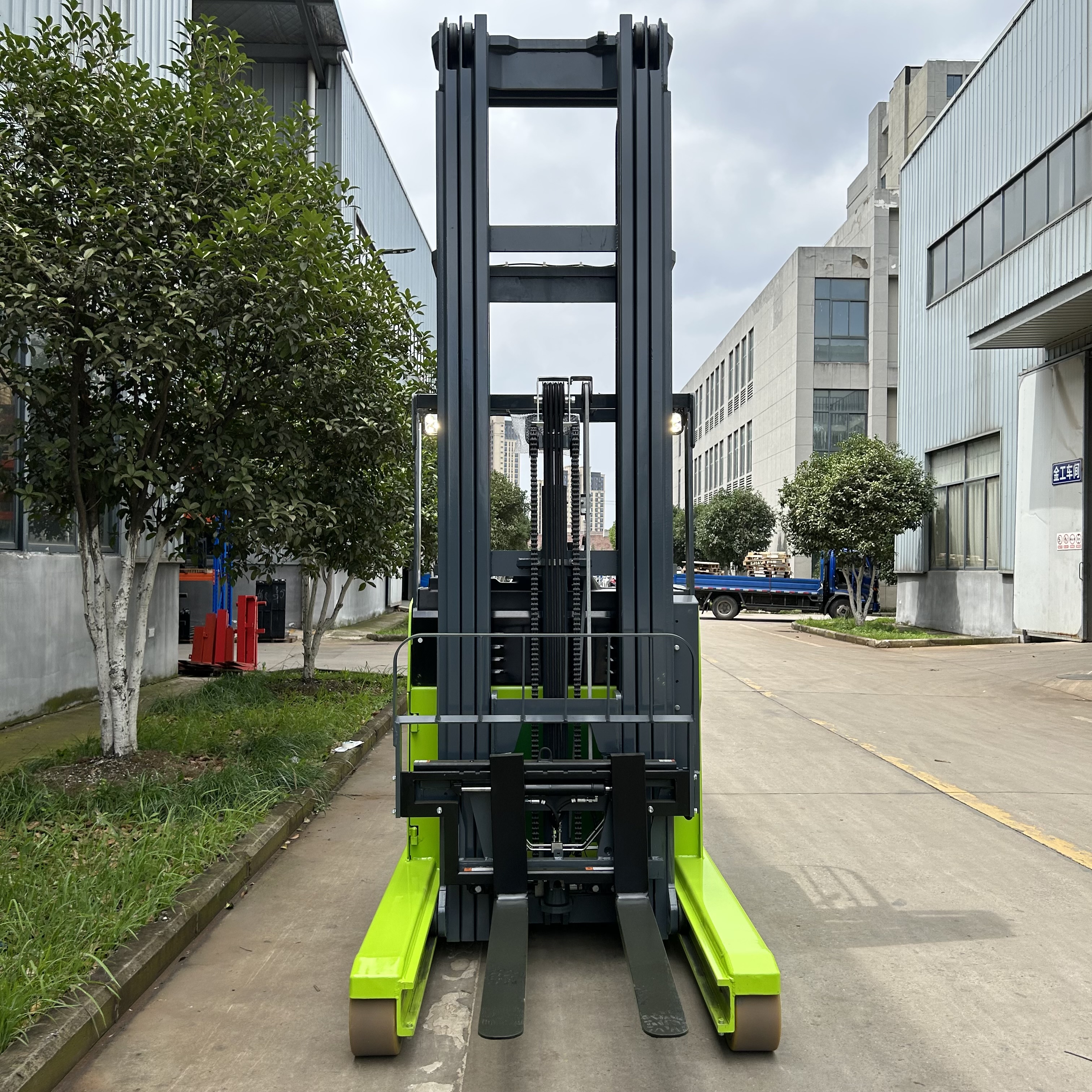

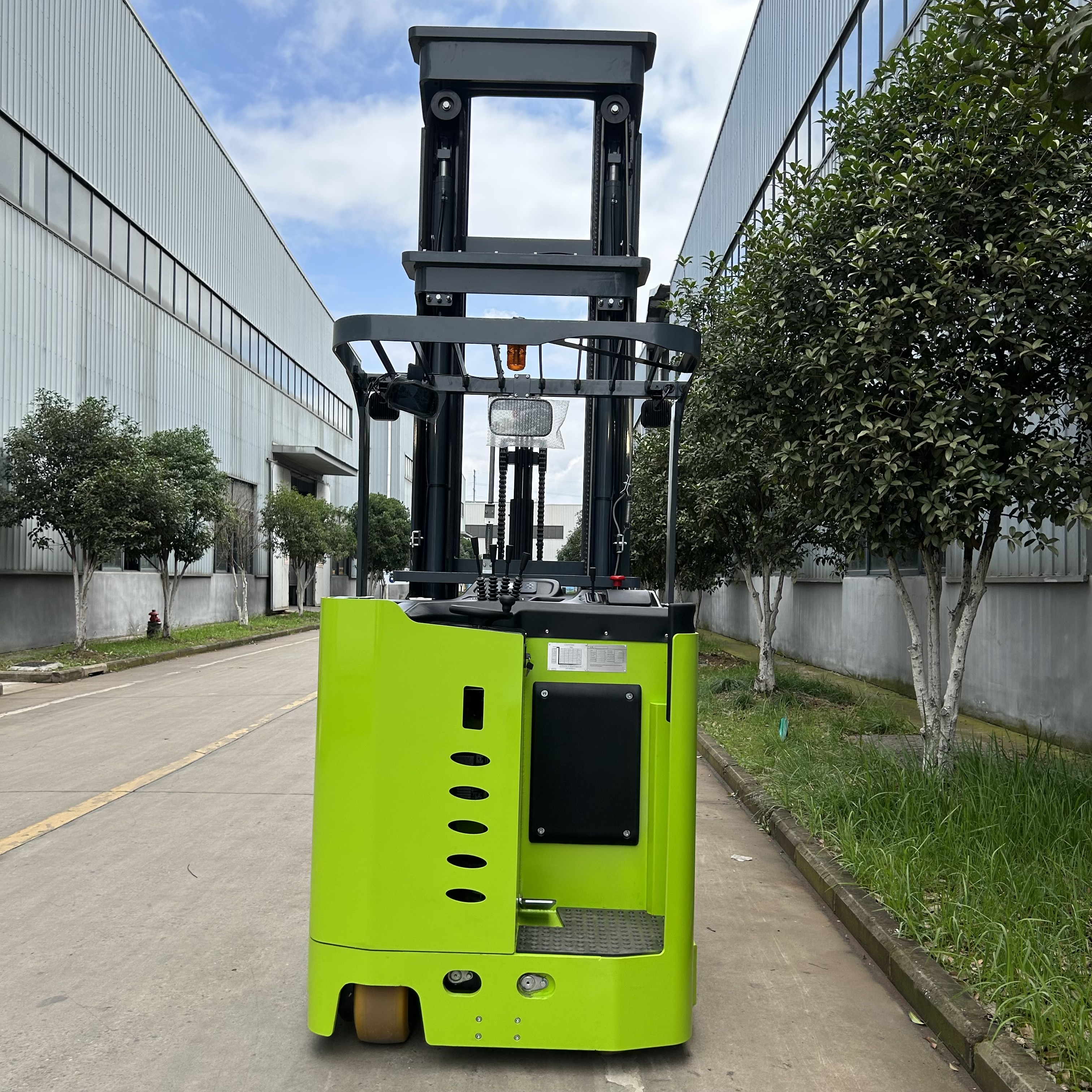

2 ton 2.5 ton Electric Reach Truck with 8m 9m 10m Triple Mast and Fork Width 122MM

1	Features	Operating Type		-	Sit-on
2			Rated load		kg	2500
3			Load center		mm	600
4			Weight(in battery)		kg	3450
5	Size	LxWxH		mm	2565x1290x2470
6			Fork size	LxWxT	mm	1220x122x40
7			Wheel Base		mm	1510
8			Lifting height		mm	5600
10			Free lifting height		mm	1570
11			Door frame angle			1/3
12			Reach distance		mm	600
14			Support Arm Medial Width		mm	920
15			To The Length Of The Support Arm		mm	1920
17			Min. Ground Clearance		mm	90
18	Motor	Power of driving motor		kw	6.4
19			Power of lifting motor		kw	11.5
20			Battery voltage/Rated capapcity		V/Ah	48/500
21			Drive control mode			MOSFET
22			Weight(battery)		kg	890
23	Working Performance	Right Angle Stacking Aisle Width Pallet Size: 800*1200 The Edge of The Size		mm	2380
24			Turning Radius		mm	1725
25			Travel Speed Full Load/No Load	kw/h	mm	9.5/10.5
26			Lifting Speed Full Load /No Load	mm/	kg	260/360
27			Descent Speed Full Load/No Load	mm/	V/Ah	500/400
28			Grade Ability Full Load/No Load	%	kw	10/15

Detailed Images

2 driving motor+ 1 steering motor

Double Curtis controller

Chinese best brand battery

Mounted right operation handle

LED rainproof Dispaly screen

Full LED Light

Toyota comfortable seat

Electric Steering

Camera

Optional Attachments

SNSC forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.

Quality Control

SNSC Forklifts have strict quality control system. Although strict quality control has been carried out during the production process, to ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery.

Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes loading, lifting, tilting, turning, climbing, etc.

Tilt angle test

Wheel hug test

Brake Line Test

Climbing test

Lifting Test

Turning Test

Package and Delivery

3 wheel electric 1.6ton battery operated forklift with cheap price Shipping with Tool Box, Forklift truck Catalog, Gloves and Forklift truck Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Packaging&Shipping 1*20'GP - 4 Units, 1*40'GP - 6 Units

Successful Cases

SNSC --"Beyond your needs!"

SNSC as a professional manufacturer of industrial vehicles, offer your various solutions for moving and stocking materials, such as diesel forklifts from 1.5t to 10t, electric forklifts from 1t to 3.5t, LPG gasoline electric stacker, warehouse trucks.

1.6ton Three wheel electric forklift to Argentina

1.8on Three wheel electric forklift to Algeria

2ton Three wheel electric forklift to Austrila

1.6ton Three wheel electric forklift to Turnisa

2ton Four wheel electric forklift to Canada

1.6Ton Three wheel electric forklift to Turnisato Bangaladesh

Our Factory

We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.

our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.

Material Preparation Workshop

Structure Workshop

Painting Workshop

Assembly Workshop
